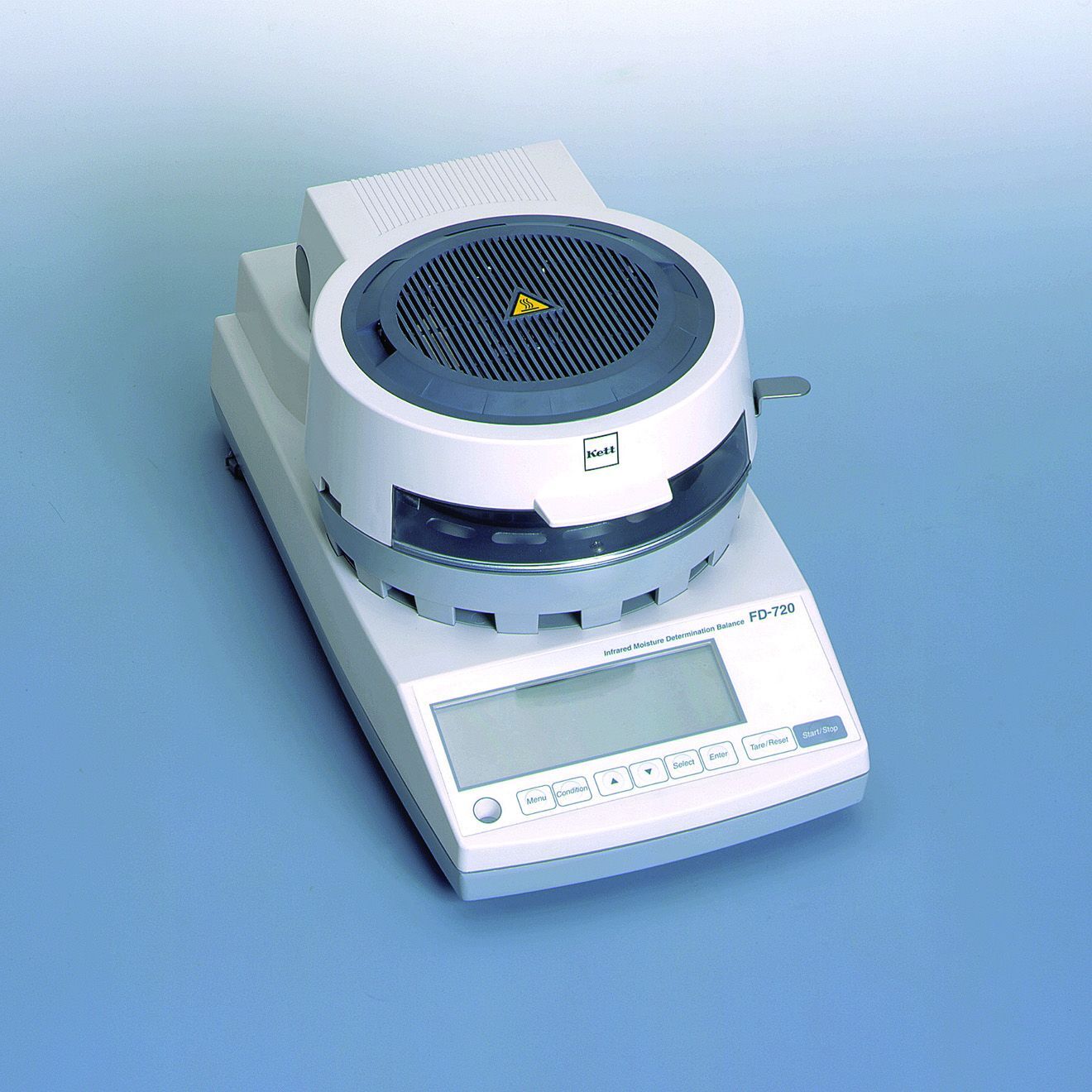

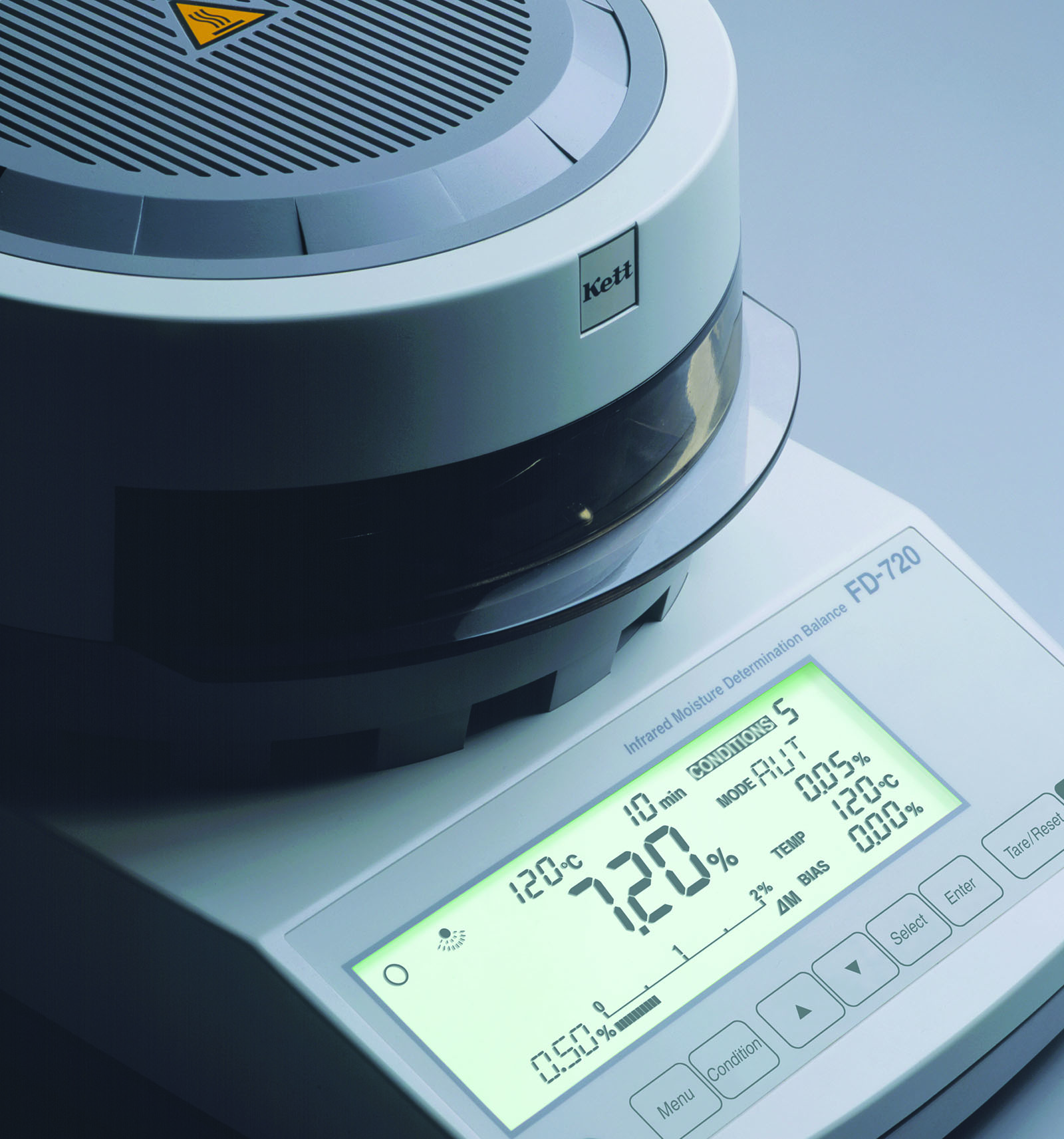

Universal Moisture Balance

Advanced Moisture Balance – Using high speed quartz heating elements, the FD720 provides unsurpassed direct LOD drying and full ISO compliance.

The large pan (almost 5″ in diameter) and large sample capacity (up to 120 grams) allows heterogeneous samples to be accurately tested. Also, homogenous samples may be quickly dried by spreading them on the large heating tray.

Quartz heating elements provide 3-5 times the life of halogen competitors, while providing the same fast start-up times. This provides a lower total cost of ownership without any productivity sacrifice.

Direct connect connections interface to almost any Microsoft Office application for smoother data capture and ISO compliance.

See: FD720 for the brochure.

SKU FD720 Category Moisture Determination Balances

$2,995.00

Additional

Weight	18.2 lbs
Dimensions	22.5 × 11.5 × 14.5 in

Description

Specifications
Specifications	Item/Details
Measurement Method	Heat drying and weight loss
Sample mass	0.5~120g
Measurement subject	Moisture / Solid content / Weight
Reproducibility (Standard deviation)	Sample with a weight of 5g or higher : 0.05% Sample with a weight of 10g or higher : 0.02%
Measurement range	0~100%(wet base , solids),0~500%(dry base)
Resolution	0.01% , 1mg
Temperature range	30~180??????C
Measurement modes	Automatic operation mode:Timed operation mode (1~240min or continuous):High-speed drying mode:Low-speed drying mode:Stepped drying mode (max of 5 steps):Predictive measuring mode
External output	RS-232C interface
Environmental conditions	Temperature 5~40??????C , Humidity : max of 85%RH Pollution degree 2 , Altitude up to 2000m
Sample dish	SUS (diameter 130mm, depth 13mm )
Heat source	Mid-wave infrared quartz heater (200Wx2)
Power supply	AC100~120V / 220~240V (50/60Hz)
Power consumption	max 900W
Size and Weight	220(W)x415(D)x190(H), 4.5kg , Shipment 310(W)x580(D)x400(H), 10kg
Accessories	Sample dish 2 pcs , Sample dish handler 2 pcs , Wind shield , Sample dish tray , Spoon and spatula set , Spare fuses(T8A 250V) 2 pcs , Power cord , Aluminum sheets(20 pcs)x2 , Operating manual
Options	Printer set( Printer VZ-330), Data logger software(KDL-01),Radiation thermometer calibration kit GF-100

Additional

Weight	18.2 lbs
Dimensions	22.5 × 11.5 × 14.5 in
