Inline Single-Kernel Moisture Monitoring — Corn, Soybean, and Grain
Measure moisture continuously as grain moves through your facility. The RX30 installs directly in the grain flow and reads single kernels in real time, covering large grains like corn and soybean alongside barley, wheat, and rice. A touch-panel controller, multi-sensor support, and data logging turn moisture readings into process control.
Contact Kett for Pricing

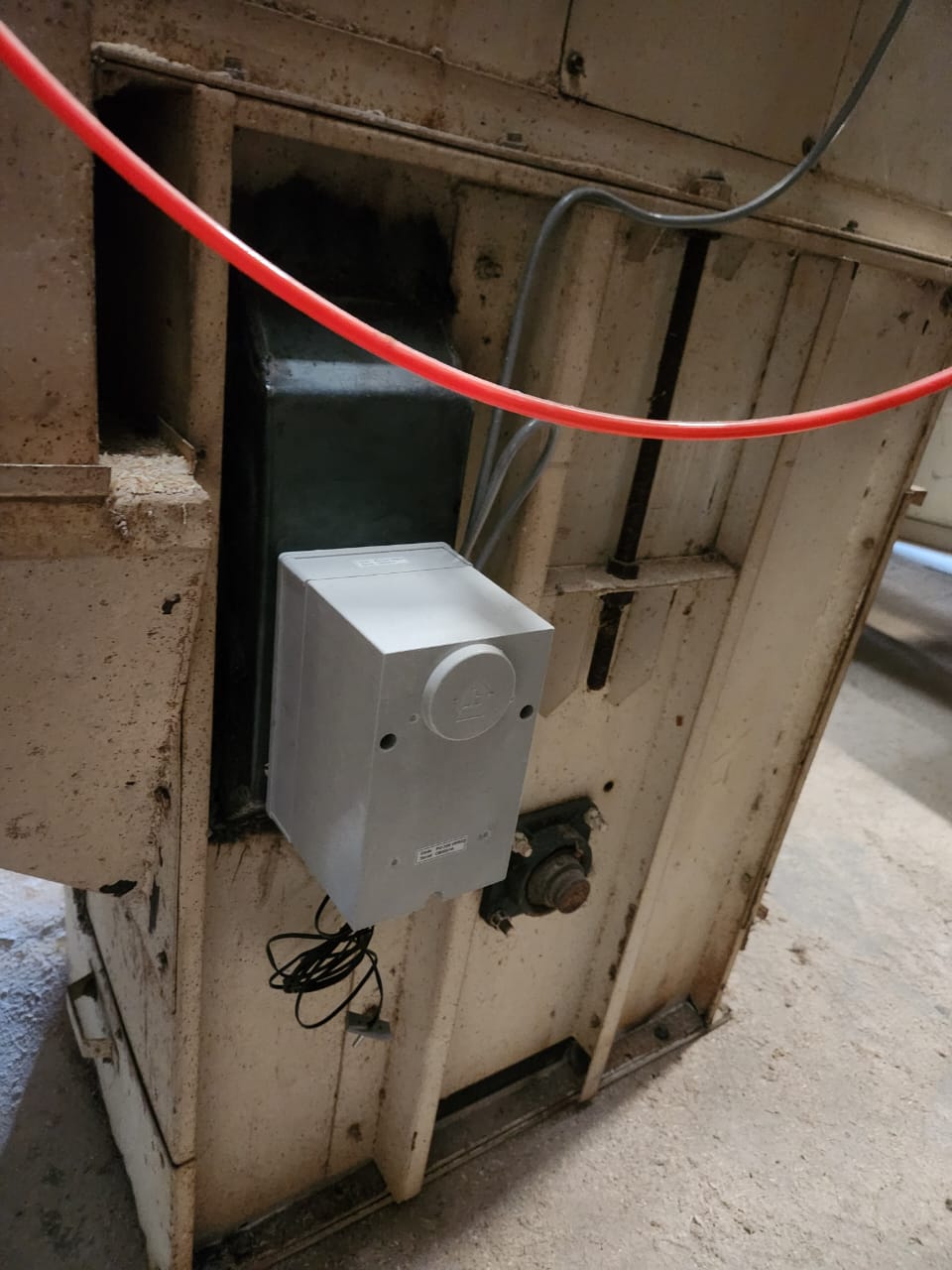

The RX30 brings continuous moisture measurement into the grain flow for facilities handling large grains. Its single-kernel sensor installs inline, inside an elevator or bucket, and measures moisture as grain passes through, covering corn and soybean as well as barley, wheat, and rice. Operators see live moisture on a touch-panel controller and can act the moment readings drift, with no need to stop and pull samples. The system scales from a single measurement point to a full facility network.
The RX30 uses a Kett single-kernel electrical resistance sensor designed for larger grains, with calibration curves developed by Kett for corn, soybean, and a full range of cereal and rice grains. Readings flow to a touch-panel controller and to PC software that consolidates data across every connected sensor, generates PDF reports, and integrates with external databases. Cable runs reach up to 500 meters, so sensors can sit where the grain is while the controller stays accessible. Optional cloud storage adds remote monitoring and long-term comparison. The system includes five years of data updates and is backed by the One Year Kett Total Care Warranty, covering parts, labor, and specification compliance.
Measuring only rice, paddy, or wheat? The RX20 Inline Grain Moisture Meter offers the same inline system tuned for smaller grains.
Need a simpler single-point monitor without PC integration? The PT2700 Inline Grain Moisture Monitor mounts on a dryer and reads moisture on its own display, no computer required.
Want the full calibration list? See the RX Series calibration reference for grain-by-grain ranges.
| Measurement Principle | Electrical resistance (single kernel) |
|---|---|
| Measurement Range | 10–40% (wet basis, grain dependent) |
| Resolution | 0.1% |
| Reproducibility | 0.1% |
| Precision | 0.1% |
| Applications | Corn and soybean processing, grain elevators, and dryer monitoring |
| Measurable Components | Moisture |
| Form Factor | Inline |
| Factory Calibrations | Corn, soybean, barley, wheat, bare wheat, long paddy, short paddy, long milled rice, long brown rice |
| Sensor Type | Single-kernel resistance sensor, elevator or bucket mounted |
| Throughput / Capacity | Approximately 60 kernels per minute; up to 10 sensors per PC |
| Display | Touch-panel controller |
| Measurement Modes | Interval, fixed time, fixed count, relay, dryer, and flatbed |
| Compensation Functions | Automatic temperature compensation |
| Features | Moisture threshold alarm 11.0–40.0% with siren, relay control for dryer or alarm, PDF reporting, histogram and standard deviation display, multi-sensor PC software with MySQL integration |
| Data Memory Capacity | Continuous logging to PC; last 10 measurements per sensor retained in the overview table |
| Operating Temperature | 0–50°C |
| Operating Humidity | 0–80% RH, non-condensing |
| Communications | USB, Ethernet, RS-485 (RS-232C to RS-485 converter included); cable runs to 500 m |
| Power | Sensor 100–240 VAC, 50/60 Hz; controller 12–24 VDC |
| Power Consumption | Sensor 75 W; controller 9 W |
| Dimensions | Controller 187 mm (W) × 52 mm (D) × 124 mm (H); sensor 150 mm (W) × 120 mm (D) × 220 mm (H) |
| Weight | Controller 0.6 kg (1.3 lbs); sensor 2.0 kg (4.4 lbs) |
| Standard Accessories | Moisture sensor with 5 m cable, 24 V power supply, touch-panel controller, RS-232C to RS-485 converter, 50 m RS-485 cable, 3 m LAN cable, USB flash drive with PC software |
| Options | Extended RS-485 and LAN cables to 500 m, relay switch board, USB to Ethernet converter, LAN splitter, additional sensors, five-year software extension, online installation |
| Warranty | One Year Total Care Warranty covering parts, labor, and specification compliance. Maintenance Agreements available. |
