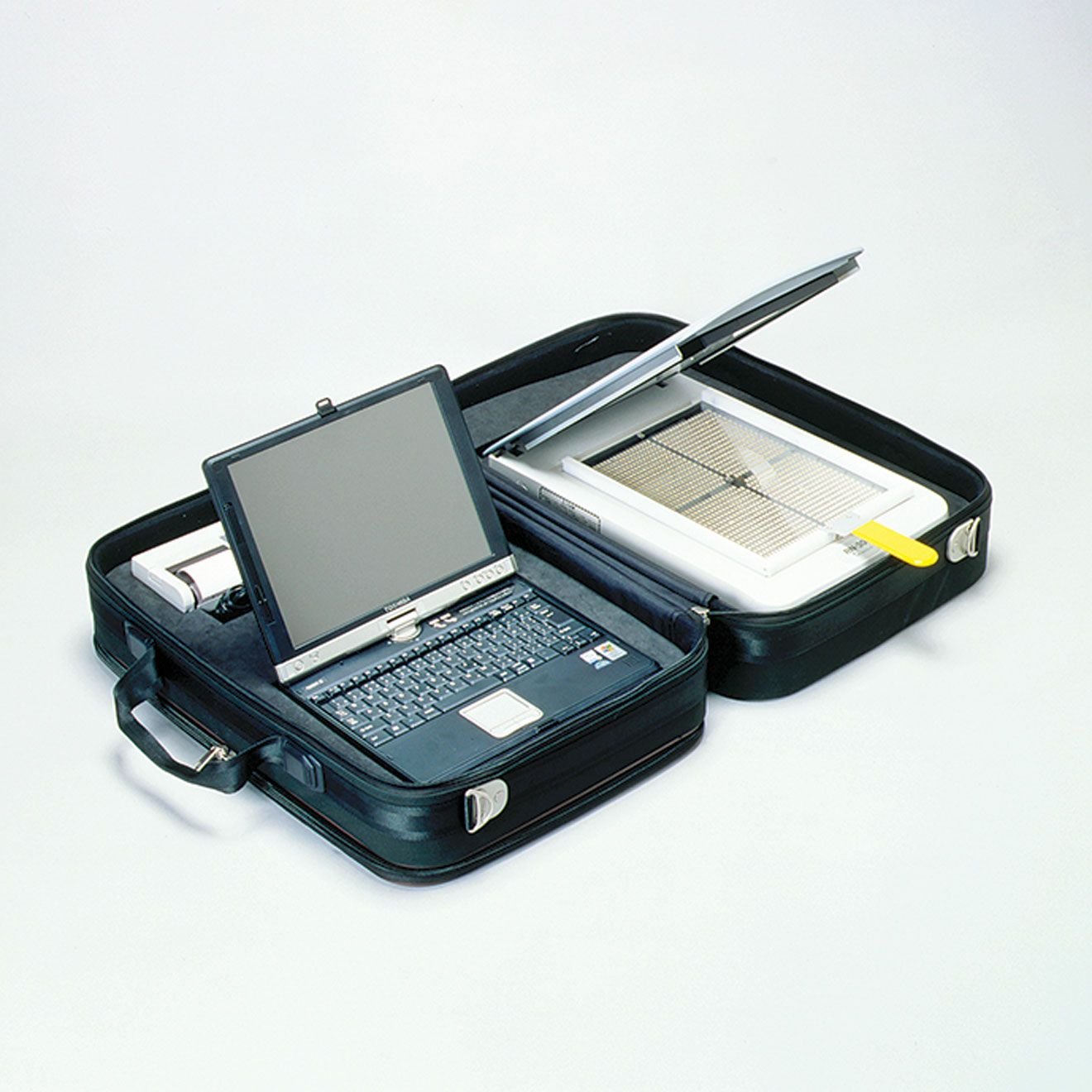

PC-Based Rice Quality Analyzer — Per-Kernel Imaging and Classification
The RN300 images each kernel on a flatbed scanner and classifies brown and milled rice against the grading criteria you set, with results correlated one-to-one to the on-screen image for review and verification.
$16,900.00
The RN300 is no longer manufactured. It is replaced by the standalone RN700E Rice Quality Analyzer, which delivers the same objective, operator-independent grading in a self-contained unit that needs no external computer. The RN300 information below is retained for owners of existing units.
The RN300 was backed by a One Year Total Care Warranty covering parts, labor, and specification compliance, with maintenance agreements available. Owners of existing units can contact Kett for service support through our regional agents across the Americas, with calibration through Kett’s US and Tokyo laboratories.
Looking for the current model? The RN700E Rice Quality Analyzer replaces the RN300 with standalone, operator-independent grading and no PC to maintain.
| Weight | 38 lbs |
|---|---|
| Dimensions | 25 × 18 × 21 in |
| Measurement Principle | PC-based image analysis; flatbed scanner images each kernel and embedded software classifies |
| Response Time | 24 seconds for 1,148 kernels |
| Applications | Brown rice; milled rice optional |
| Form Factor | Desktop |
| Sample Size Range | 1–1,148 grains; full sample tray holds 1,148 |
| Light Source | White cold-cathode fluorescent lamp (CCFL) |
| Sensor Type | Color CCD |
| Display | PC software on Windows laptop; TFT LCD |
| Features | Sealed optical sensor; tray-based handling; one-to-one image and data correlation; 50–300% grain zoom; thermal printer included; QualityScan software |
| Data Memory Capacity | Up to 10,000 results, Excel export |
| Classification Categories | Brown rice: approval mode, 3 categories; general mode, 3 basic / 6 standard / 21 detailed. Milled rice (optional): 4 basic / 6 standard / 17 detailed |
| Operating Temperature | 5–35°C (storage −25 to 60°C) |
| Operating Humidity | 10–80% RH, non-condensing |
| Communications | USB 2.0, LAN (Ethernet) |
| Power | 100 VAC ±10%, 50/60 Hz |
| Power Consumption | 100 VA |
| Dimensions | 840 mm (W) × 580 mm (D) × 115 mm (H), in use |
| Weight | 12 kg (26.5 lbs) |
| Standard Accessories | Measurement tray, tray cover, scanner cover, sample box, mouse, locking wrench, brush, silicone cleaning cloth, spray cleaner, printer paper (two rolls), power cable, PC accessories, manual |
| Options | TZ700 shaker table and grain line former; milled rice software with tray and scanner cover |
| Warranty | One Year Total Care Warranty covering parts, labor, and specification compliance. Maintenance Agreements available. |
