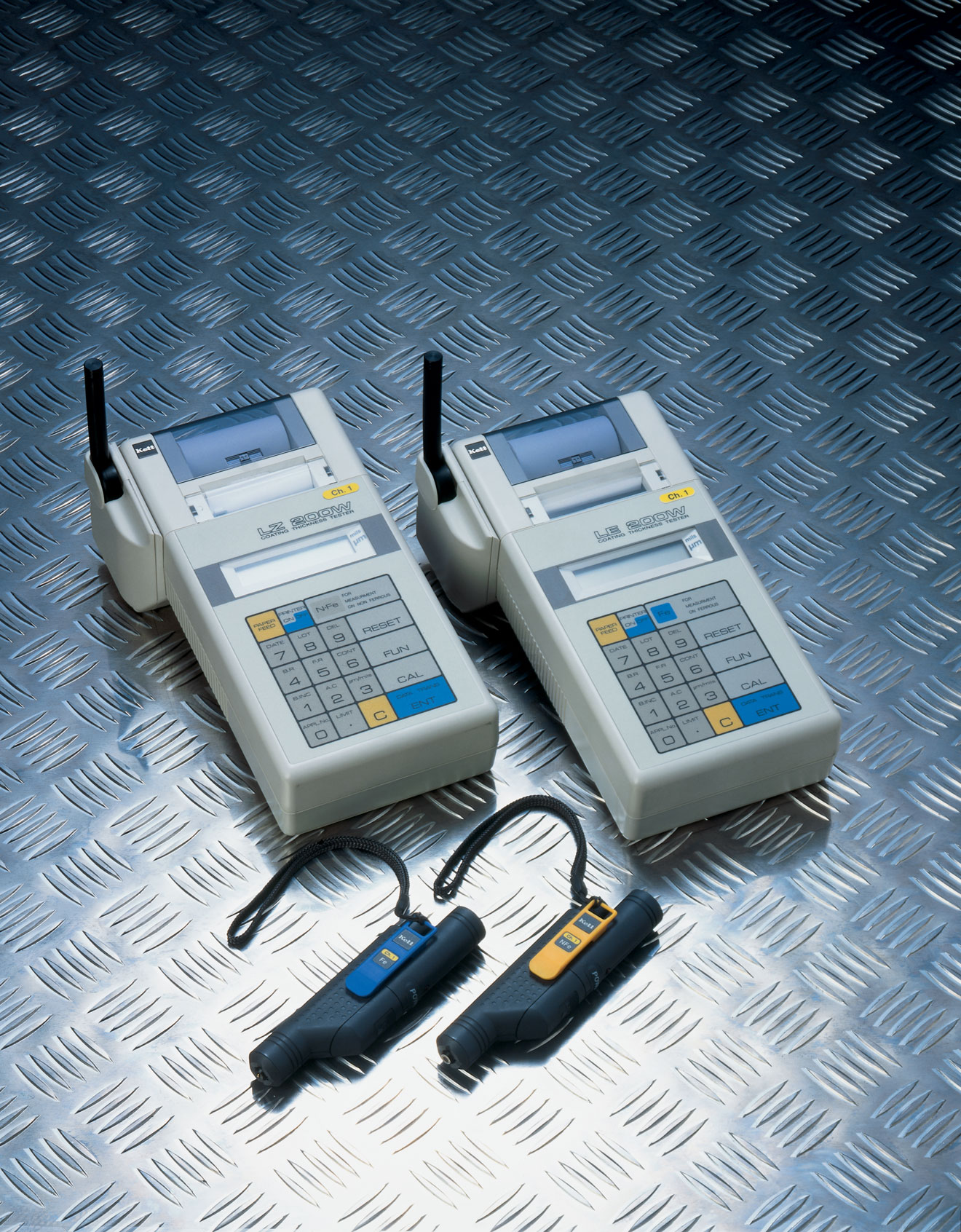

Dual Mode (Ferrous and Non-Ferrous) Substrate Coating Thickness Gauge – Wireless – no longer in production
The best of the best, these test systems include the features of the 200 Series with the added benefit of radio frequency (RF) data transmission.
Test probes can be carried in a shirt pocket for the ultimate in portability and data can be transmitted up to 1500 feet in an industrial setting, allowing the operator to test in any plant location and transmit the signal to the central storage/control unit.
Ferrous and non-ferrous substrates can be measured.
$3,895.00
The best of the best, these test systems include the features of the 200 Series with the added benefit of radio frequency (RF) data transmission. Test probes can be carried in a shirt pocket for the ultimate in portability and data can be transmitted up to 1500 feet in an industrial setting, allowing the operator to test in any plant location and transmit the signal to the central storage/control unit. Ferrous and non-ferrous substrates can be measured.
| Weight | 7 lbs |
|---|---|
| Dimensions | 15.25 × 11.5 × 4 in |
| Measurement Principle | Magnetic Induction and Eddy Current |
| Measurement Range | 0 to 1500 µm (Fe); 0 to 800 µm (NFe) |
| Accuracy | ±0.3 µm (0.01 mil); ±2% over 15 µm |
| Resolution | 1 µm (0.1 mil) |
| Response Time | Instant |
| Applications | Non-magnetic coatings on magnetic metal; insulating coatings on non-magnetic metal |
| Calibrations | 8 |
| Substrate Compatibility | Ferrous and non-ferrous |
| Features | Wireless data output; automatic metric/mil conversion; hi/lo alarms; statistics: lot number, measurement count, average, standard deviation, maximum/minimum values, hi/lo limits |
| Included Features | Integrated thermal printer |
| Data Memory Capacity | 1500 measurements |
| Operating Temperature | -18 to 38 °C (0 to 100 °F) |
| Power | 6 x AA batteries, or AC adapter |
| Dimensions | 120 (W) × 250 (D) × 55 (H) mm |
| Weight | 1.4 kg (3 lbs) |
| Standard Accessories | Calibration standards, leather carrying case |
| Warranty | One Year Total Care Warranty covering parts, labor, and specification compliance. Maintenance Agreements available. |
