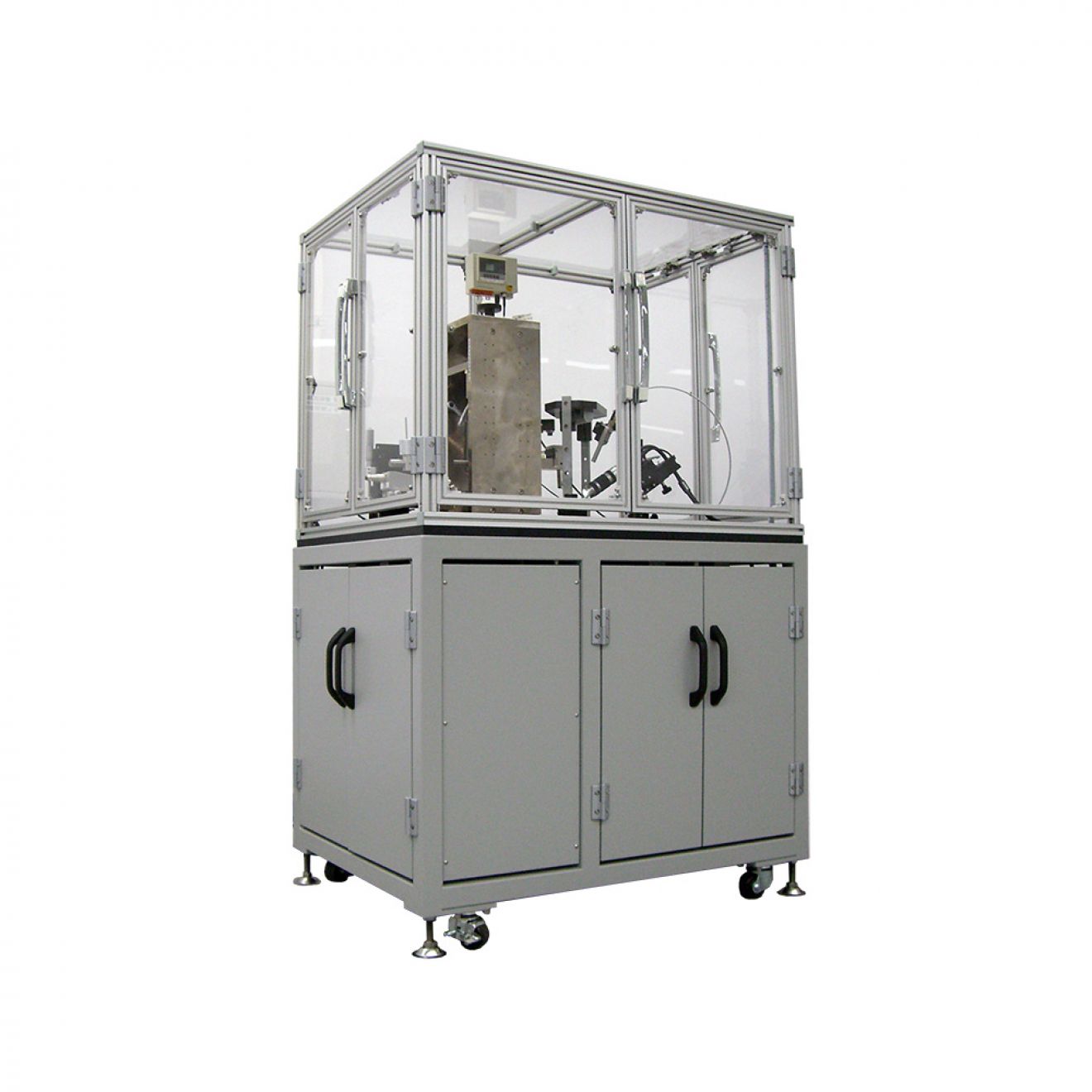

Wide-Range Load Friction and Wear Tester

Now with it’s wider range measurement range, the H35 allows for testing from a minimum of 20g to a maximum of 100kg. This allows for optimal rotational wear testing due to its ability to address low and high speeds. The H35 can conduct a single test up to a maximum of 9,999,999 times. The H35 also utilizes a non-contact type of thermometer with an interlocking system as its opening and closing type (safety cover).

SKU H35 Categories Friction, Wear and Surface Property Analyzers

$94,500.00

Additional

Weight	150 lbs
Dimensions	31 × 20 × 30 in

Description

Using a high sensitivity balance arm method for the minimum loading of 20g up to a maximum load of 10kg, The H35 also offers a high loading range from 10kg to 100kg. Utilizing a raising and lowering load mechanism, this instrument is a friction and wear tester providing an exceptionally wide range of loading.

Working with a rotating table that is capable of a minimum 30rpm up to a maximum 3000rpm, acceleration testing can be carried out using high loading and high rotation. Furthermore, the optimum method for testing can be selected from two measurement methods: the torque meter and load cell.The wide range is provided not only in the loading and the rotation.A variety of wear testing is supported using the various functions and options, such as testing while immersed in oil or testing over a high temperature range using heating equipment (optional). Please contact us if you have this type of specialized measurement requirements.

Additional

Weight	150 lbs
Dimensions	31 × 20 × 30 in
