L600E Expert Coating Thickness Gauge

Wireless Data and On-Site Reporting for High-Volume Inspection

The L600E is built for inspectors who measure in volume and report in the field. It is the same color-display, multi-probe measurement platform as the Standard, but with Bluetooth, a mobile app, and double the memory added for modern data handling. Capture readings, attach photos and location notes, and send a finished report from the job site.

Solving the Data Workflow Challenge

• Manual data transfer slows reporting: Bluetooth sends readings wirelessly to the free LDL Mobile app on an Android phone or tablet, with no cable to a PC.
• Reports get built back at the office: The app compiles statistics, graphs, photos, and location notes into a PDF report you can share by cloud or email on site.
• Memory fills on long jobs: 100,000 readings, double the Standard, keep extended logging runs in the gauge before you offload.
• Inconsistent readings on awkward shapes: Scan and scan-average modes capture continuous readings and report a stable average on curved, blasted, or uneven surfaces.

Built for the Bench and the Field

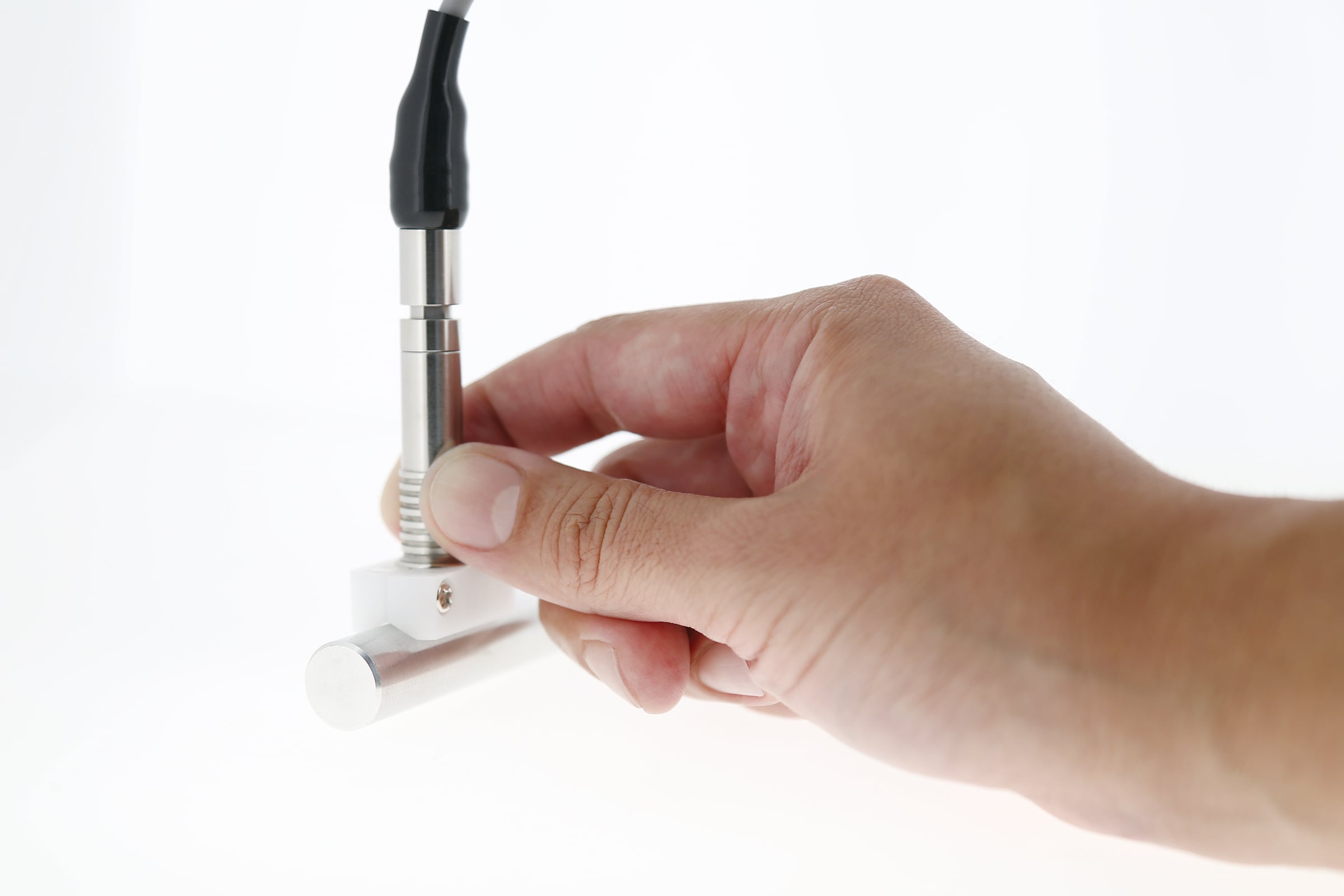

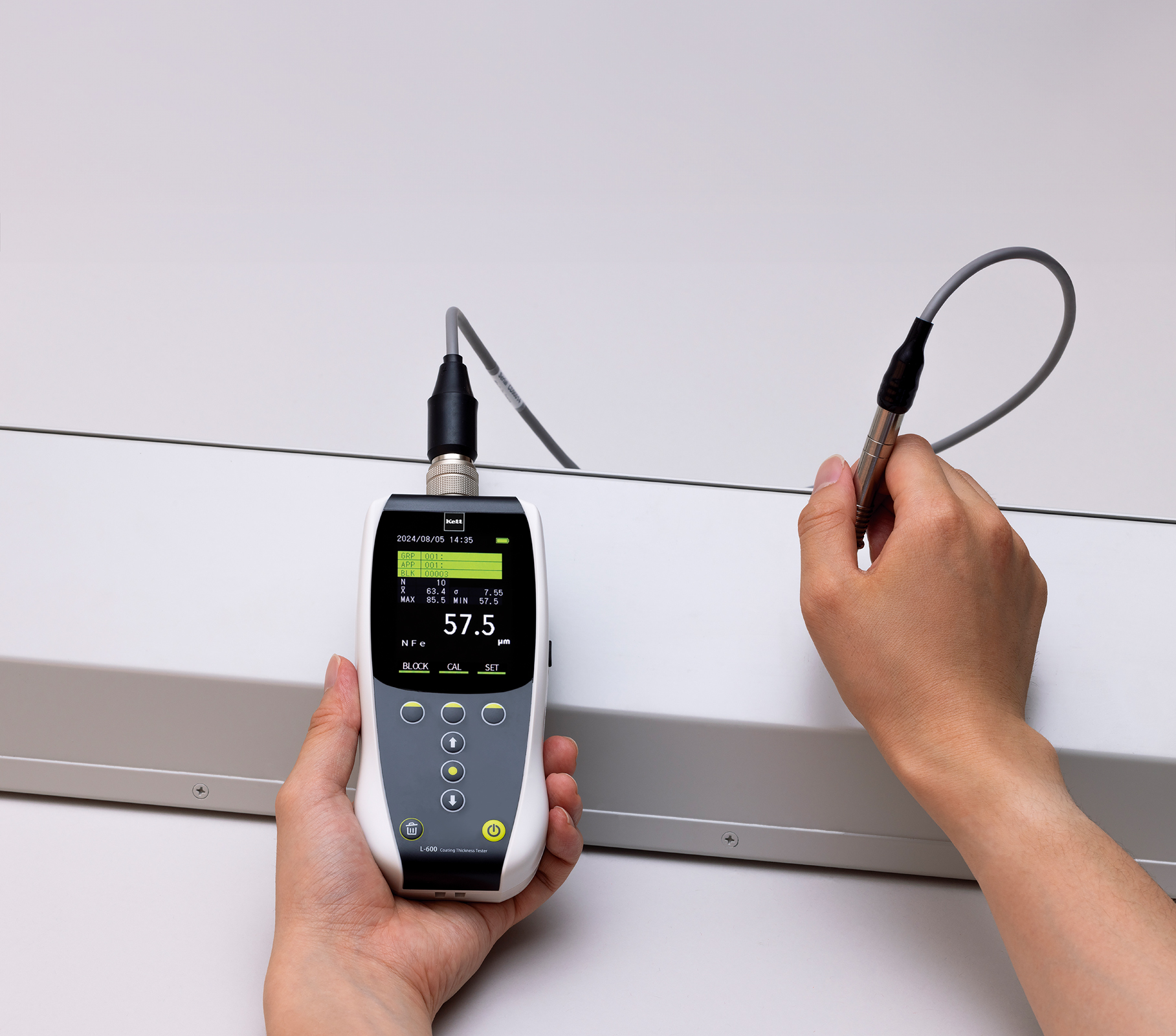

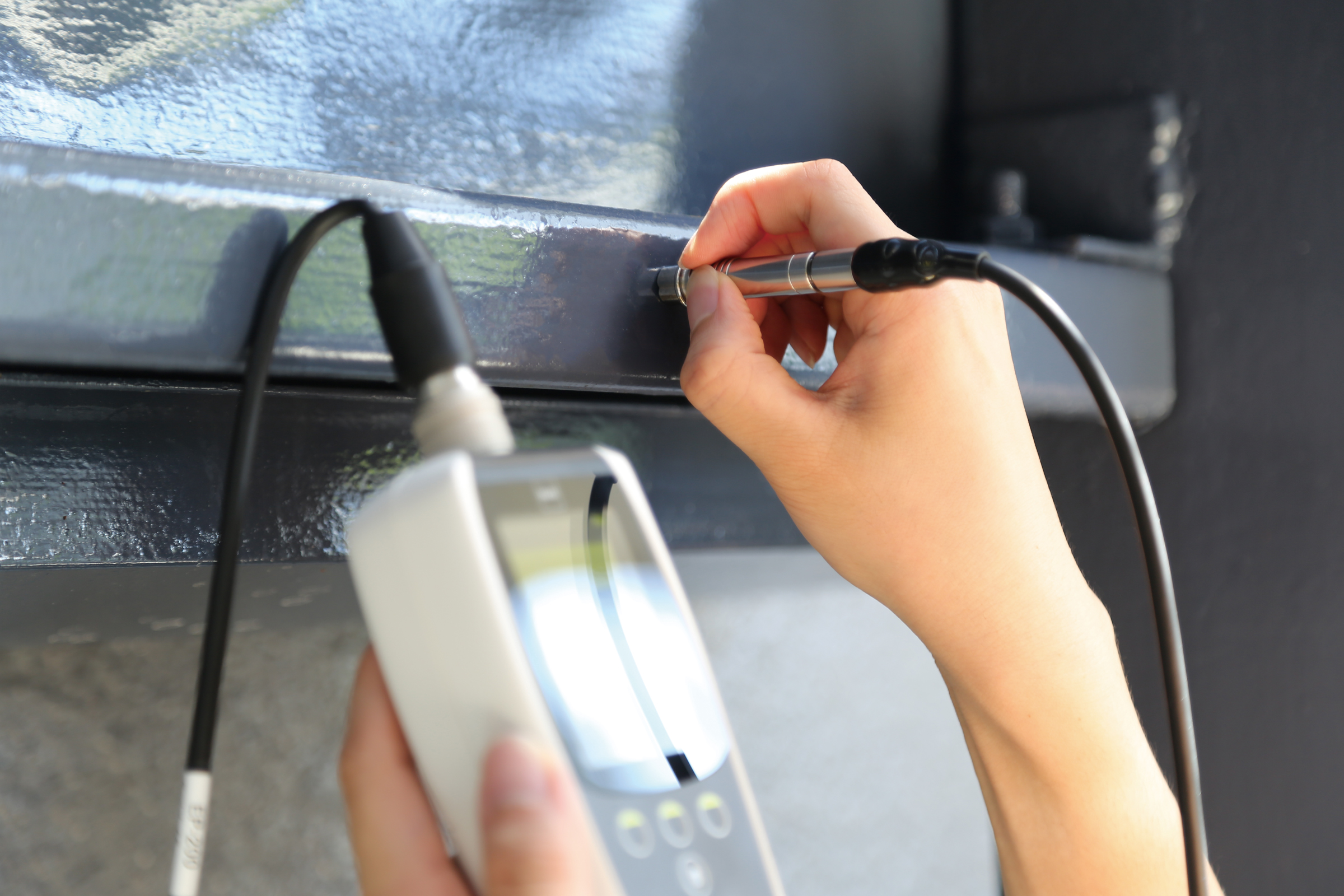

The slim, tapered body fits comfortably in one hand, and four AA batteries deliver up to 70 hours of use. Swap between electromagnetic and eddy current probes to measure coatings on steel or on aluminum, copper, and brass, with each probe storing up to 50 application calibrations. The 2.7-inch color display stays clear in direct sunlight, and guided on-screen calibration walks any operator through the routine. Wired USB-C output and the free LDL Export PC software are included alongside Bluetooth. Readings display in microns, millimeters, or mils.

Don’t need wireless or the larger memory? The L600S Standard Coating Thickness Gauge is the same measurement gauge with USB-C output and 50,000-reading memory at a lower price.

Need a built-in printer for on-site records? The L500 Coating Thickness Gauge prints hard-copy results at the part with an always-attached thermal printer.
