Constant Pressure Sensor for Low-Moisture Paper and Board
Desktop lever-press sensor for the HK300 paper moisture tester. Identical clamp force on every test delivers the repeatability needed for accurate measurement at low moisture levels.
$1,400.00

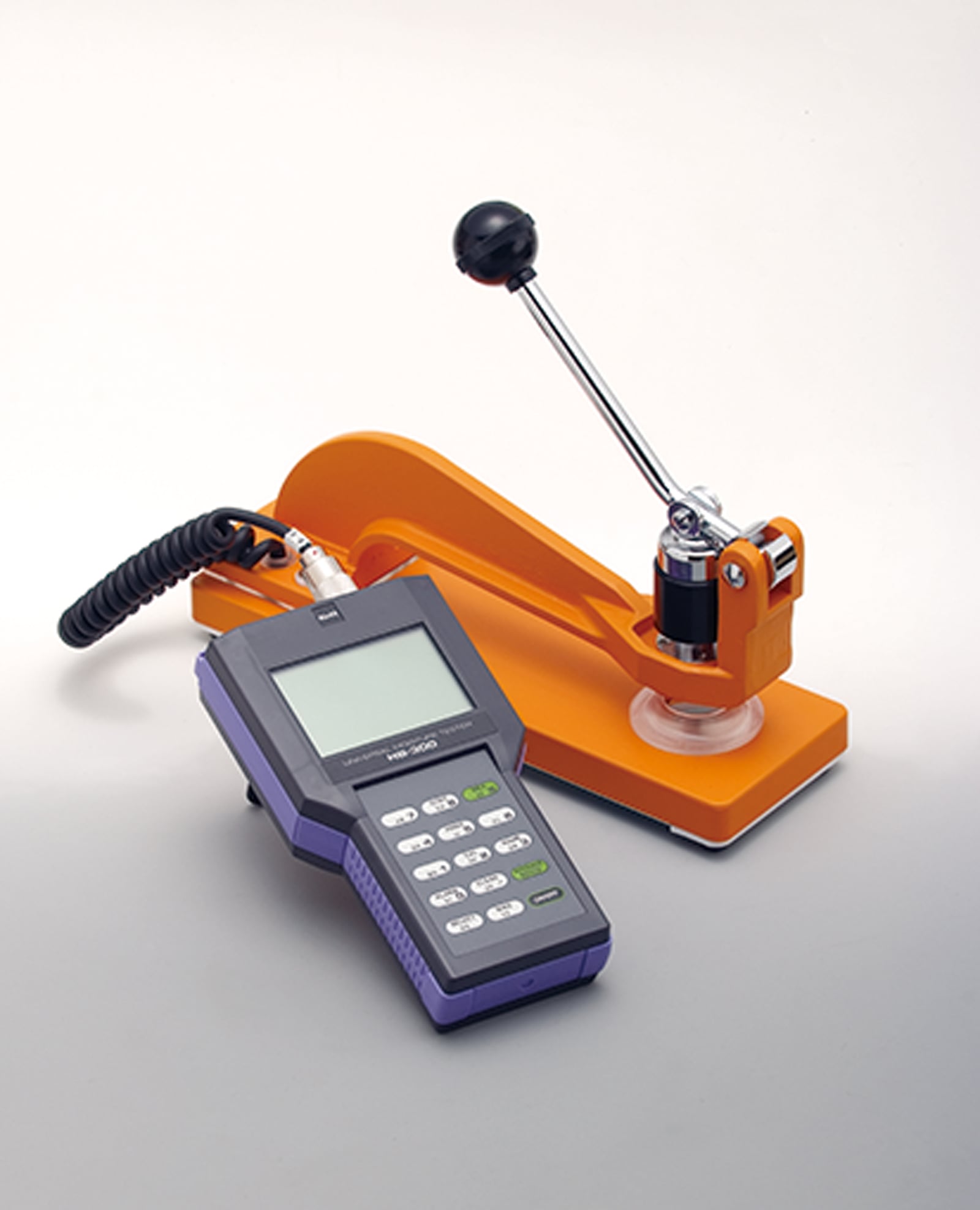

The HK3 constant pressure sensor is a desktop lever press that clamps the sample with identical force on every test. That repeatable contact pressure is what makes reliable measurement possible at the low end of the moisture scale, where readings are most sensitive to probe contact.
Need the main instrument? The HK300 Instant Paper Moisture Meter pairs with any of the three available sensors; at least one sensor is required for measurement.
| Measurement Principle | Electrical resistance |
|---|---|
| Measurement Range | Copy paper 2–10%, liner board 5–15%, kraft 2–10% (wet basis) |
| Resolution | 0.1% |
| Reproducibility | 0.1% |
| Precision | 0.1% |
| Response Time | Approximately 3 seconds |
| Form Factor | Desktop |
| Calibrations | Copy paper, liner board, kraft (resident in HK300 main unit) |
| Probe Compatibility | HK300 |
| Sensor Type | Pressure type |
| Operating Temperature | 0–40°C |
| Power | Supplied by HK300 main unit |
| Dimensions | 100 mm (W) × 310 mm (D) × 250 mm (H) |
| Weight | 2.5 kg (5.5 lbs) |
| Warranty | One Year Total Care Warranty covering parts, labor, and specification compliance. Maintenance Agreements available. |
